Product Details
Product Application
A. Up and down hydraulic control to ensure convenient and flexible operation;
B. Installed on a separate tractor with low power consumption;
C. Special corn peeling function to ensure peeling clean;
D. There is no risk of clogging and high speeds are obtained;
- Harvest 2 rows with an efficiency of up to 0.27-0.33ha / h;
Main Features
1. Compact structure, excellent performance, Low ground pressure, high performance in wet or mud land
2. Excellent threshing ability, low broken rate. Low loss rate.
3. High harvesting efficiency, picking the corn and chopping the stalk at the same time.
4. Mini type, easily to turn in field, suitable for hilly ground
5. High quality engine with large power and stable performance
6. The belt-driven 2wd tractor can also be used for other purpose while removing the corn harvesting system.
7. Height-adjustable cutting header.

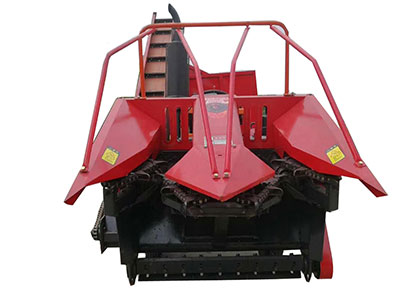

There are 4 main parts :
1. Wide reaper head ,2. Conveyor belt, 3. Corn Peeling Equipment,4. Corn storage bin
| Model |
NKCH-2 |
| Matched power |
More than 15hp single cylinder tractor/
more than 25hp multi cylinder tractor |
| Harvest rows |
2 |
| Stubble height |
5cm |
| Working row distance |
50-80cm |
| Machine weight |
500kg |
| Machine size |
4500*1350*4650mm |
