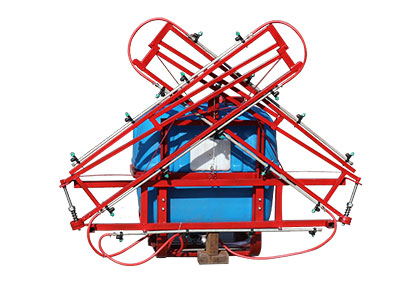

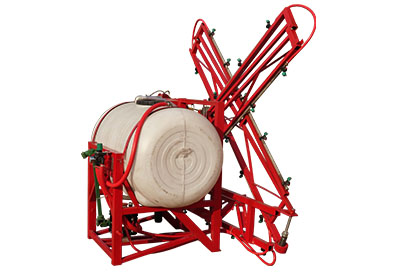

Pesticide boom sprayer

Boom sprayer is widely praised by the owners of small and medium-size farms by virtue of its simplicity and flexibility.
Compactly designed, easy to operate and cost little in maintenance, it could connect with the tractor quickly and easily. The water pump it equipped with is high-pressure diaphragm pump, which shall greatly prolong its working life. In addition, the properly designed three-section spraying irrigation system is more agile.


Product Details

Main Features
1) Simple structure in linear type ,easy in installation and maintination.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine

Model Tank Volume(L) Sparying width(m) Spraying nozzles(pcs) Matched horse power(hp) Weight(kg) Pressure pump model Linkage type Spray nozzles brand
NKBS-400 400 6 12 40-50 260 MB80


3 pointed linked



Germany
NKBS-500 500 10 20 50-55 280 MB90
NKBS-700 700 10 20 60-75 310 MB90
NKBS-800 800 10 20 75-80 340 MB90
NKBS-1000 1000 10 20 90-100 380 MB90
NKBS-500-1 500 12 24 55-60 290 MB90
NKBS-700-1 700 12 24 60-75 340 MB90
NKBS-800-1 800 12 24 80-90 380 MB90
NKBS-1000-1 1000 12 24 90-100 400 MB90
