Milling Machinery

Mainly applied by pharmacy, foodstuff and chemical industry.
Suitable to large, medium or laboratory small batch production.

Product Details

Brief:
Mainly applied by pharmacy, foodstuff and chemical industry.
Suitable to large, medium or laboratory small batch production.

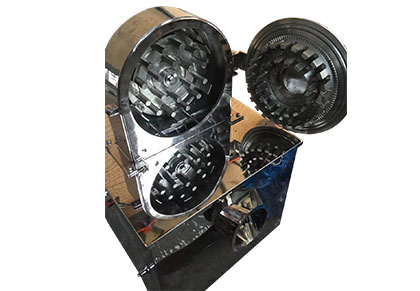

The machine is made with stainless steel, different output size achieved by changing the sieve in cavity. Pulverizing cavity mainly consisted of active and fixed fluted discs; material is smashed by disc impact, grinding and granule collision between the two fluted discs.

Technical Specifications:

Model NKMF-20 NKMF-30 NKMF-40 NKMF-50 NKMF-60 NKMF-80
Capacity(Kg/H) 30-150 50-200 100-400 150-500 200-800 250-1000
Feed Size(mm) < 10 < 10 < 10 < 10 < 10 < 10
Output Size(mesh) 12-120 12-120 12-120 12-120 12-120 12-120
Motor Power(KW) 4 5.5 11 15 22 30
Speed(RPM) 4200 3800 3200 2900 2800 2800
Overall Size(mm) 750x550x1400 770×750×1500 870×750×1708 900×850×1850 950×1000×2000 1100×1100×2250
