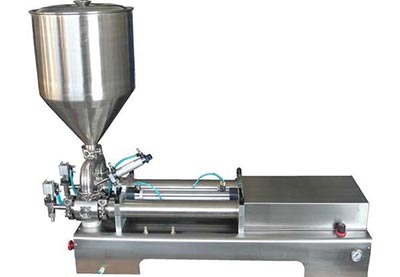

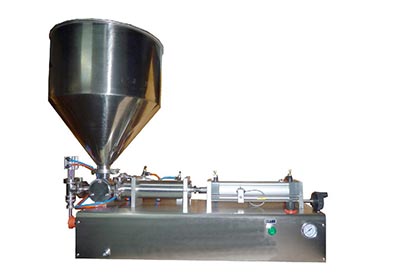

Peanut Butter Filling Machine
This machine is mainly used for the quantitative filling of liquid paste and mucus, such as:peanut butter,sesame butter,nut butter, soy sauce, honey, grease, syrup, jam, sauce, shampoo, skin care products, etc.
Product Details
This machine is mainly used for the quantitative filling of liquid paste and mucus, such as:peanut butter,sesame butter,nut butter, soy sauce, honey, grease, syrup, jam, sauce, shampoo, skin care products, etc.
It is suitable for food, medicine, cosmetics and other industries.
Features:
Small model, reasonable design, easy to operate.
All the pneumatic parts adopt ATRTAC pneumatic components.
The cylinders and pistons are made of ptfe and 304 stainless steel.
In line with GMP requirements, full pneumatic explosion-proof filling.
The filling core adopts anti-drip and wire-drawing device.
Functions:
Filling quantity and filling speed can be easily adjusted.
Can carry on the automatic filling and the foot switch control filling two working modes of conversion.
The filling pressure can be adjusted at any time according to the fluidity of mucus or paste.
Technical parameters:
Filling range: 25-500ml / 100-1000ml /500-2800ml
Filling accuracy: ±1-2%
Filling speed: 10-30 bottles/min
Working pressure: 0.6-0.8mpa
Dimensions: length × width × height (800×300×750)mm
Machine weight: 50kg
