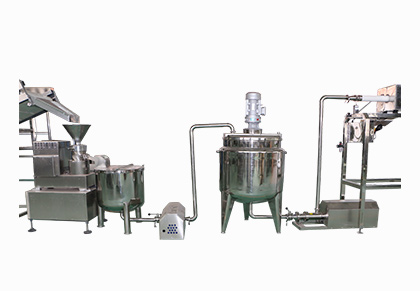

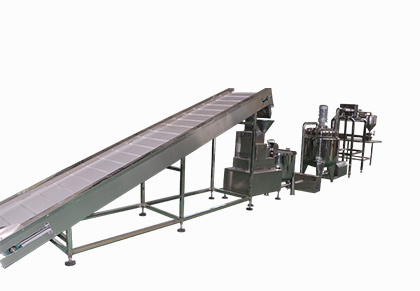

Peanut Butter Production Line
Main equipments of this line are peanut roaster, peeling machine, picking belt, elevator, peanut butter grinding machine, agitator tank, transfer pump, mixer, homogenizer, fine grinding machine, vacuum tank, cooling machine, filling machine and so on.
Product Details
Introduction of Industrial Peanut Butter Production Line
Main equipments of this line are peanut roaster, peeling machine, picking belt, elevator, peanut butter grinding machine, agitator tank, transfer pump, mixer, homogenizer, fine grinding machine, vacuum tank, cooling machine, filling machine and so on.
Working process introduction:
1, Roasting:
Batch roaster’s working temperature is 200-210 ºC, 20-30minutes.use batch roaster will bake some delicious smells.
2, Cooling:
Peanut will be send cooling belt to cool.
3, Peeling:
put the roasted peanuts into peeler to take off the red skin,
the double rollers will frication the red skin, the simple cyclone system will suck
the red skins, most of them will be put in half-piece, then fall to the selecting conveyor,
the over-roasted and un-blanched peanut kernel is picked up by manual or mechanical.
4, Primary grinding
Using steel grinder to make the first grinding;
5, Second grinding
Using colloid grinder to make the second grinding, the fineness of grinding is
controlled below 7um, temperature of grinding is controlled below 68C.
6, Mixing:
make the butter more homogeneous
7, Cooling:
the butter through second grinding should be cooled immediately.
The temperature should go down 45C.
8, Degasser :
Take out the air from peanut butter.
9, Storage tank:
settling down in the storage tank till the temperature drop to air
temperature.
10, Packing and filling section:
by the filling machine, the finished peanut butter is packed into 200g/500g/1000g bottle.
